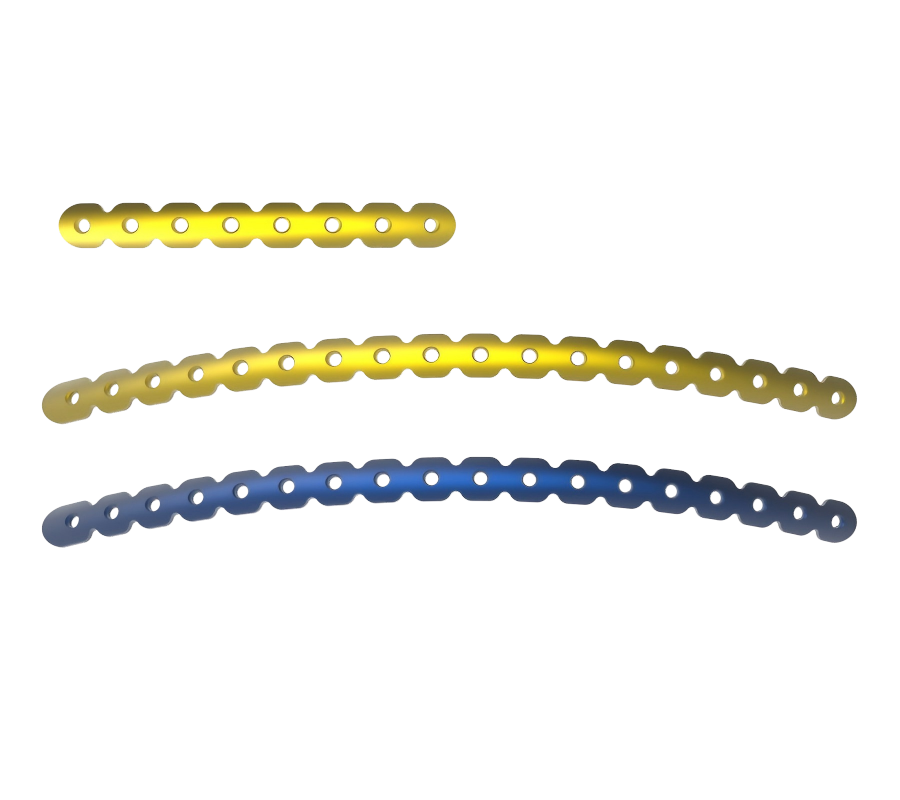

The Rib Fixation System consists of locking plates and locking screws for fixation, stabilization and reconstruction of rib fractures, fusions, osteotomies and resections, including universal and side‑specific precontoured plates for varied rib segments.
Rib Fixation System adopts TC20 (Ti6Al7Ni) material with low biological toxicity, high fatigue strength, and elastic modulus close to human bone；
It uses pre‑contoured fixation plates with sterile packaging to shorten operation time；
It features 1.5 mm thickness for low‑profile design；
It provides stable fixation via locking holes；
It distinguishes left‑ and right‑side plates by different colors；
It offers 8‑hole universal fixation plates.
| Name | Specification | Remarks |
| Rib Locking Plate | 8‑Hole | Universal |
| R3‑5 15‑Hole | Left / Right | |
| R6‑7 17‑Hole | Left / Right | |
| R8‑9 18‑Hole | Left / Right | |
| Rib Locking Screw | Ø2.9, L 6‑18 mm | / |
