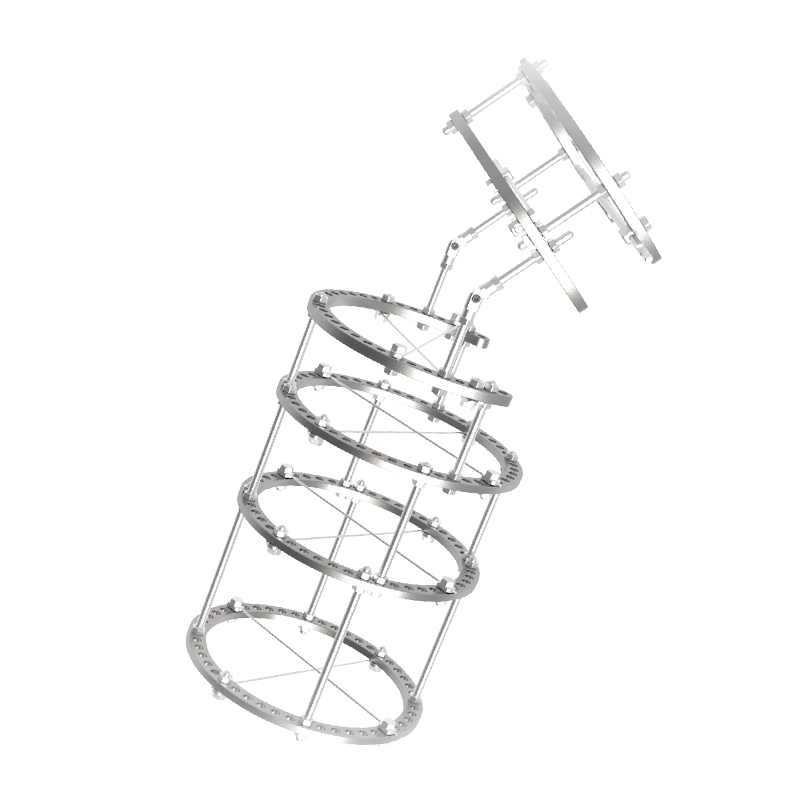

Hybrid External Fixator is a modular orthopedic external‑fixation device for deformity correction and fracture management, covering orthopaedic, ring and extension fixator for femur and tibia clinical applications.
Hybrid External Fixator adapts to various orthopedic deformity‑correction scenarios.
Circumferential structural design delivers centred and stable bone fixation.
Bracket removal can be completed in outpatient service without secondary surgery.
Minimally‑invasive operation causes less periosteal and hematologic trauma with fewer complications.
Works on tension‑stress principle; controllable dynamic design with micro‑motion promotes fracture healing.
| Name | Specification |
| Full Ring | Ø100~240 |
| Half Ring | B100~240 |
| C Ring Type Ⅱ | C100~240 |
| U Ring | U120~160 (Short) |
| Straight Threaded Rod | M6×30~400 |
| Angled Support Rod | 55 |
| Pin Clamping Column (Internal Threaded Column) | 1 Hole×19 2 Holes×31 3 Holes×43 4 Holes×55 |
| Pin Clamping Column (External Threaded Column | 1 Hole×19 2 Holes×31 3 Holes×43 4 Holes×55 |
| Pin Clamping Column (Internal Threaded Square Column) | 1 Hole×20 2 Holes×32 3 Holes×44 4 Holes×56 |
| Pin Clamping Screw (Hollow Type) | M6×18×5 M6×20×5 M6×18×6 M6×20×6 |
| Pin Clamping Screw (Hook Type) | M6×18×2 M6×20×2 |
| Universal Joint Device | M6 |
| Internal Threaded Hinge | M6 |
| External Threaded Hinge | M6 |
| Hex Nut | SW10 |
| High-Cap Hex Nut | M6×15/20 |
| Hex Screw | M6×10~24 |
| Spring | Ø8×50 |
| Washer Type Ⅰ | T1、T2 |
| Washer Type Ⅱ | T2、T4 |
| Slotted Washer | T3 |
| Spherical Washer | M6 |
| Reducing Sleeve | Ø3~6 |
| Extension Regulator Type Ⅱ | M6×80 |
| Scanz Guide | Ø8×30 |
| Angle Regulator | M6×100/150 |
| Connecting Plate | Type I, 2~8 holes |
| Straight Connecting Plate | Type II, 2~5 holes |
| Kirchner Wire | 2×350 |
| Olive Wire | Type V,2×350 |
