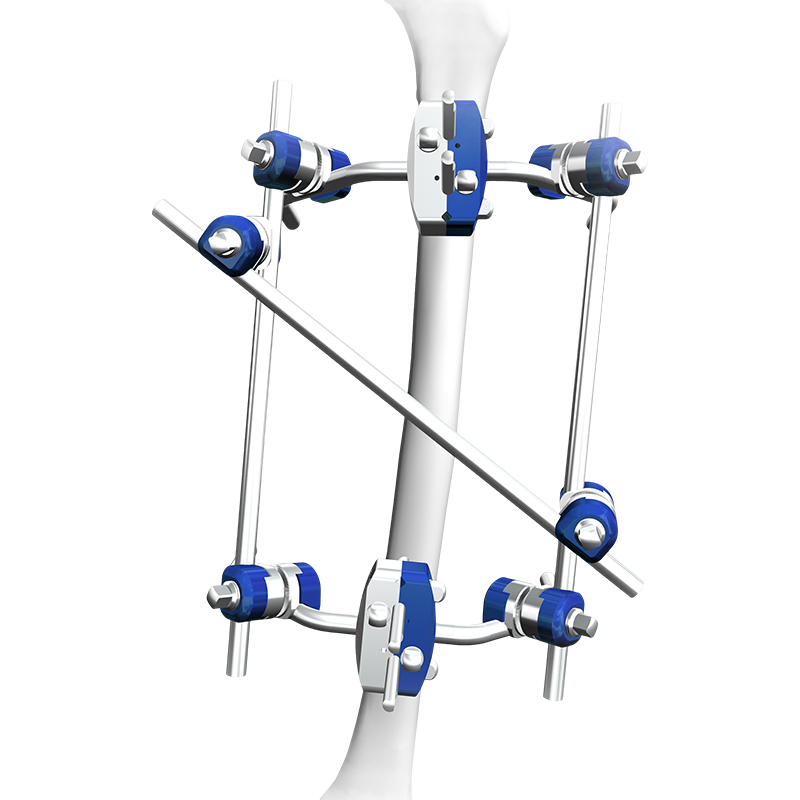

Combined External Fixation System adopts multi‑plane modular construction for flexible frame assembly. It delivers stable skeletal fixation for complex limb fractures, deformity correction and limb reconstruction in orthopedic trauma procedures.
Combined External Fixation System features modular multi‑plane design, supporting versatile frame configuration to match varied clinical scenarios.
Combined External Fixation System achieves rigid multi‑directional stability to handle complex fractures and bone‑deformity correction.
Combined External Fixation System allows intraoperative frame adjustment for fine‑tuning of bone alignment.
Combined External Fixation System is compatible with multiple‑diameter connecting rods for flexible clinical selection.
Combined External Fixation System provides reliable holding strength while minimizing soft‑tissue interference.
| Modle | Name | Specification |
| Φ5 | Pin-post Coupling | 4 holes |
| Peri-Articular Pin Clamp | 4 holes | |
| Rod-pin Coupling | Ф5 | |
| Pin-rod Coupling | Ф5 | |
| Rod-rod Coupling | φ5×φ5 | |
| Straight Post | Ф5×38 | |
| 30°Angled Post | Ф5×41 | |
| Curved Alum Rod | Ф5×110/140 | |
| Pin Clamp | 2 holes | |
| Elbow Fixator | Ф5×395 | |
| Wrist Fixator | Ф5×310 | |
| Aluminum Rod | Ф5×60~300 | |
| Carbon Fiber Rod | Ф5×120~400 | |
| Φ8 | Pin-post Coupling | 5 holes |
| Rod-pin Coupling | Ф8 | |
| Rod-rod Coupling | Ф8 | |
| Straight Post | Ф8×65 | |
| 30°Angled Post | Ф8×80 | |
| Tube-tube Clamp | Ф8 | |
| Adjustable Clamp | Ф8 | |
| Knee Fixator（left/right） | Ф8×600 | |
| Ankle Fixator | Ф8 | |
| Aluminum Rod | Ф8×150~400 | |
| Curved Alum Rod | Ф8×160~200 | |
| Carbon Fiber Rod | Ф8×100~400 | |
| Φ11 | Tube-tube Clamp | Ф11×11 |
| Transverse Clamp | Ф11 | |
| Adjustable Clamp | Ф11 | |
| Rod-rod Clamp | Ф11×11 | |
| Open Adjustable Clamp | Ф11 | |
| Elbow Fixator （left/right） | Φ11×290 | |
| Connecting Rod | Ф5×150 | |
| Carbone Fiber Rod | Ф11×80~400 | |
| Stainless Steel Tube | Ф11×100~400 | |
| Dynam&Comp Clamp | Ф11 | |
| Pin Wrench | Ф3~6 | |
| Scanz Guide (4-layer) | Ф4~6 | |
| Open Spanner | L10mm | |
| Drill Bit | Ф1.8~4.5 |
